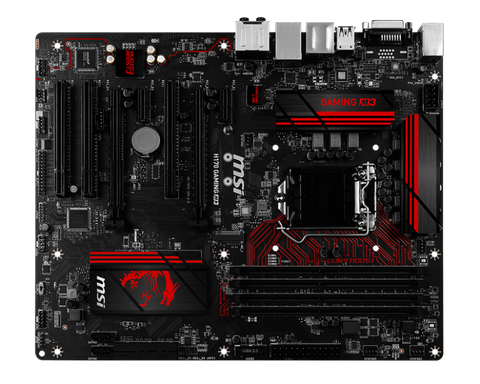

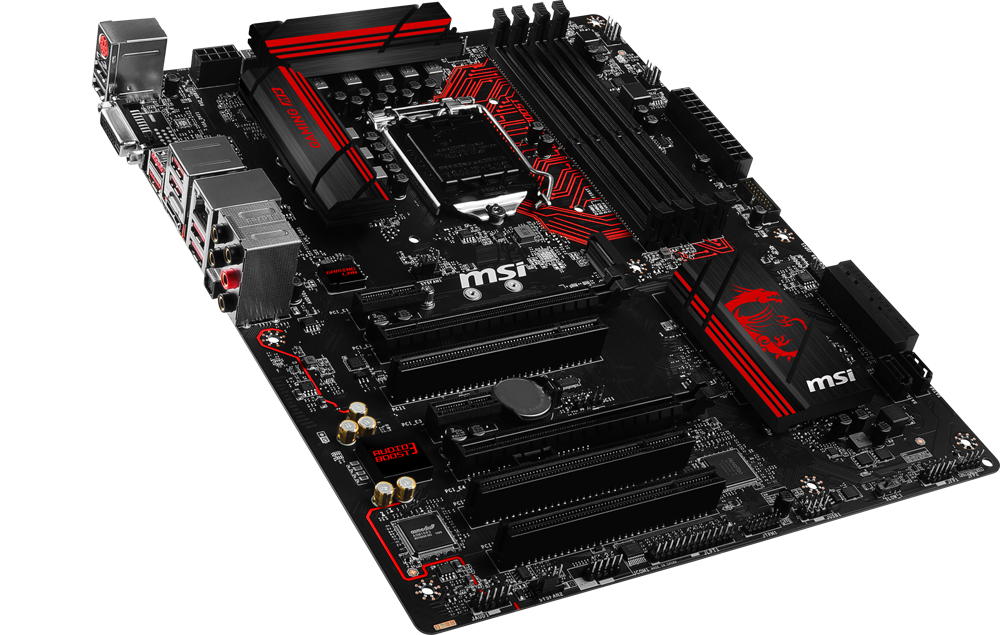

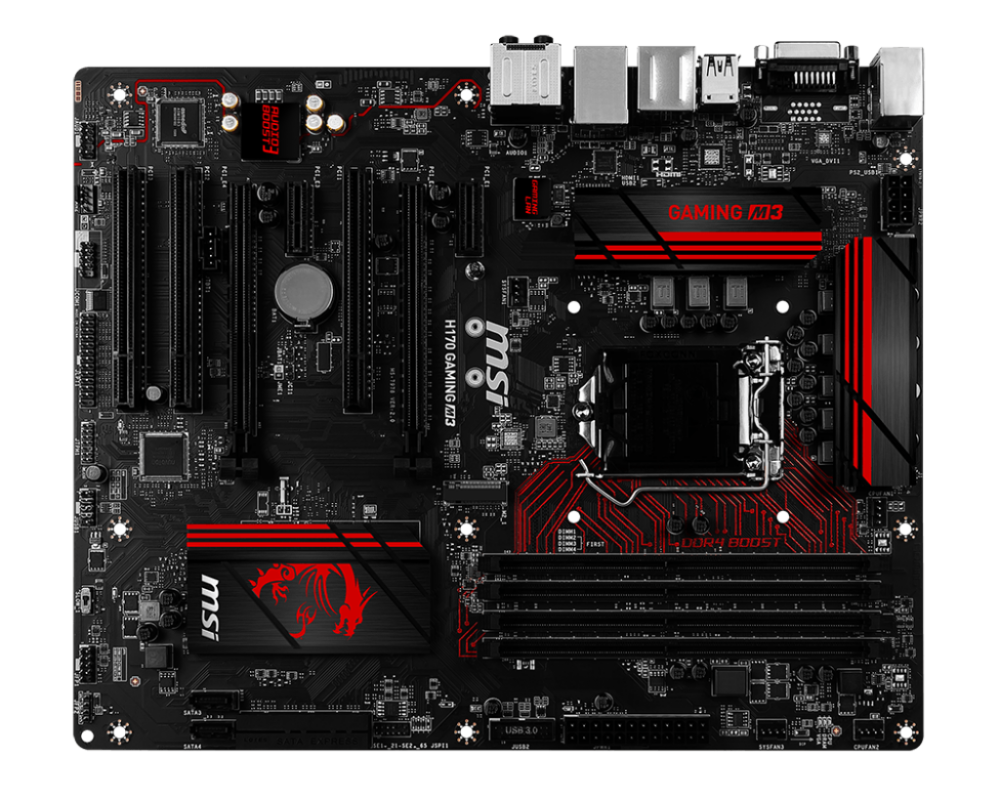

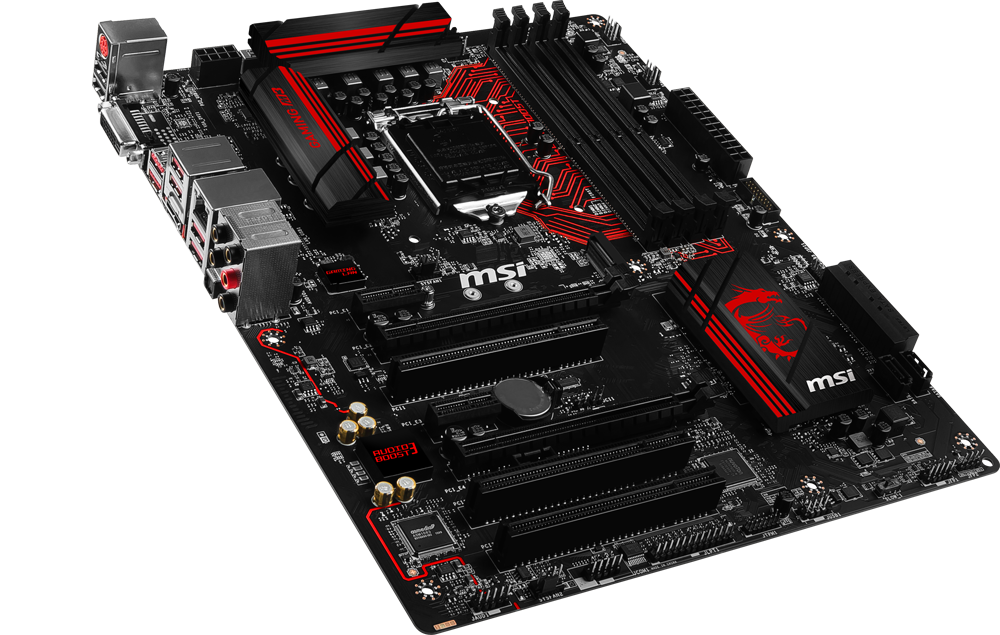

Mainboard MSI H170 Gaming M3

Hãng sản xuất

Model

H170 GAMING M3

Chipset

Intel^® H170

CPU hỗ trợ

- Hỗ trợ CPU Core i7/i5/i3/Pentium^®/Celeron^® Processors thế hệ thứ 6 (Socket 1151)
- L3 cache varies with CPU

RAM hỗ trợ

• 4 x DDR4 memory slots, support up to 64GB
• Supports DDR4 2133 MHz
• Dual channel memory architecture
• Supports ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

Đồ họa

• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• Supports 2-Way AMD® CrossFire™ Technology

Lưu trữ

• Intel® H170 Chipset
• 6 x SATA 6Gb/s ports
• 1 x M.2 slot
- Supports PCIe 3.0 x4 and SATA 6Gb/s standards, 4.2cm/ 6cm/ 8cm length M.2 SSD cards
- Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card (optional)*

• 1 x  SATAe port
• Supports RAID 0, RAID1, RAID 5 and RAID 10
• Supports Intel® Smart Response Technology for Intel Core™ processors.

Audio

• Realtek^® ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

LAN

• 1 x Killer™ E2400 Gigabit LAN controller

Khe cắm mở rộng

• 2 x PCIe 3.0 x16 slots*
• 2 x PCIe 3.0 x1 slots
• 3 x PCI slot

* The PCI_E4 slot will only run PCIe 3.0 x1 speed when the PCI_E1 or PCI_E3 slot is installed a device.

USB

- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connectors)

Kết nối I/O bên trong

Kết nối bảng phía sau

- 1 x PS/2 keyboard/ mouse port
- 4 x USB 2.0 ports
- 1 x DVI-D port
- 1 x HDMI™ port
- 4 x USB 3.1 Gen1 ports
- 1 x LAN (RJ45) port
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
- 1x 128 Mb flash
- UEFI AMI BIOS
- ACPI 5.0, PnP 1.0a, SM BIOS 2.8
- Multi-language

Hệ điều hành hỗ trợ

Kích thước
