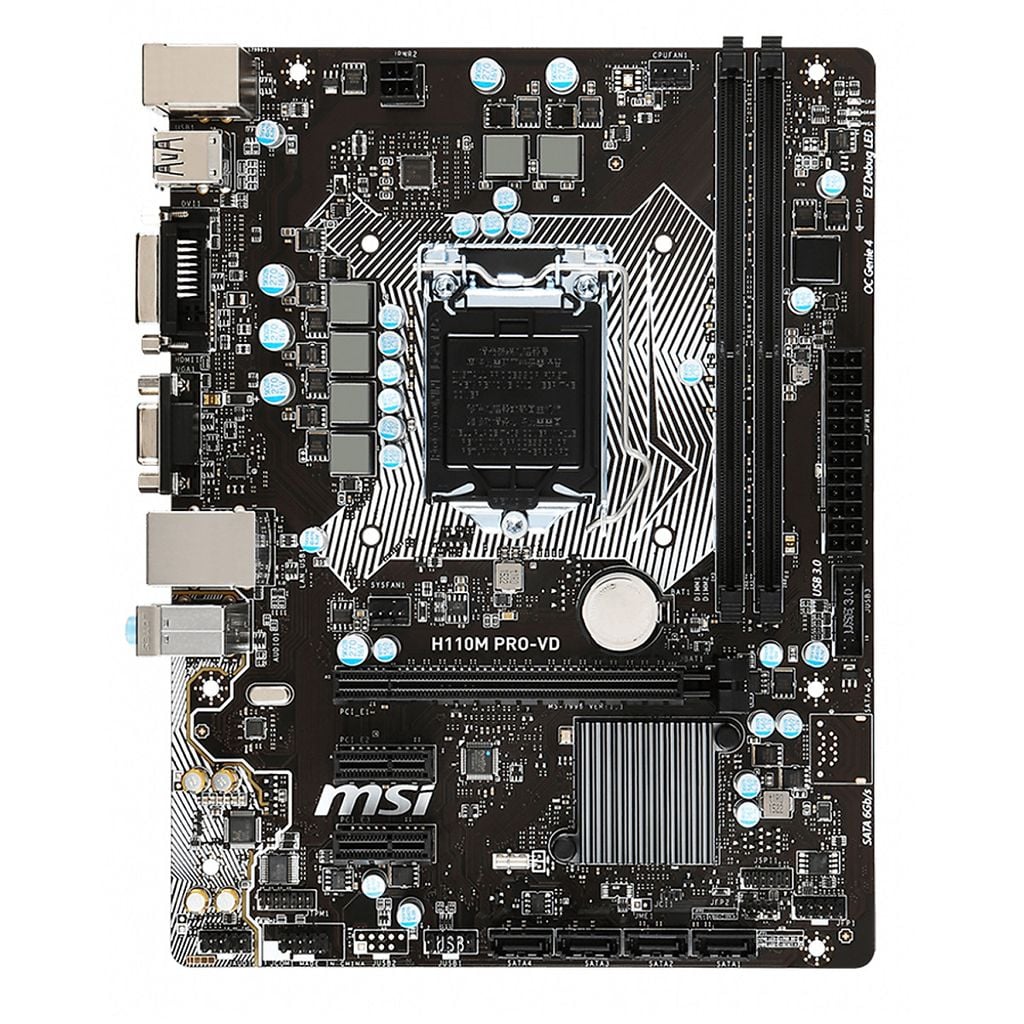

Mainboard MSI H110M Pro VH1

Hãng sản xuất

Model

H110M PRO-VHL

Chipset

Intel^® H110

CPU hỗ trợ

• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

RAM hỗ trợ

• 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2133 MHz
• Dual channel memory architecture
• Supports Non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

Đồ họa

• 1 x HDMI™ ports, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz

Lưu trữ

• 4 x SATA 6Gb/s ports

Audio

• Realtek® ALC887 Codec
• 7.1-Channel High Definition Audio

LAN

• 1 x Realtek RTL8111H Gigabit LAN controller

Khe cắm mở rộng

• 1 x PCIe 3.0 x16 slot
• 1 x PCIe 3.0 x1 slots
• 1 x PCI slot

USB

• Intel® H110 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connectors)

Kết nối I/O bên trong

- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper

Kết nối bảng phía sau

- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 2 x USB 2.0 ports
- 2 x USB 3.1 Gen1 ports
- 1 x Serial port
- 1 x Parallel port
- 1 x VGA port
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 3 x audio jacks

Hệ điều hành hỗ trợ

Kích thước
