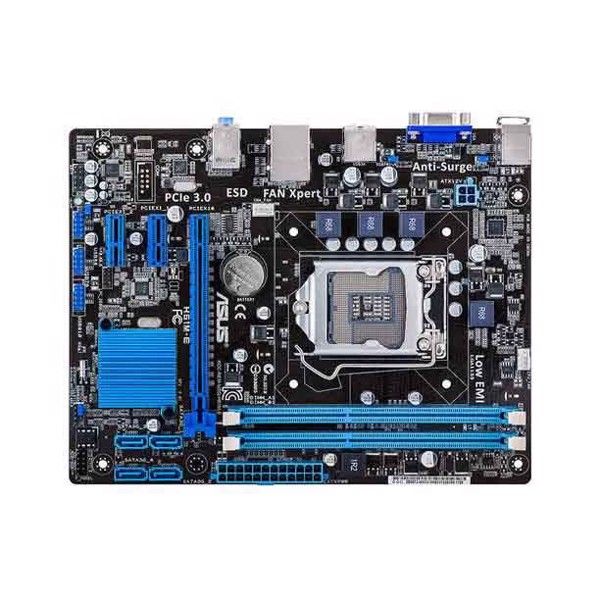

Mainboard Asus H61M-E

ĐẶC ĐIỂM NỔI BẬT

• CPU

  Intel® Socket 1155 for 3^rd/2^nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 22 nm CPU
  Supports Intel® 32 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list

• Chipset

  Intel® H61(B3)

• Memory

  2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  * 1600MHz and higher frequency is supported by Intel® 3rd generation processors.
  * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
  * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
  * Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default.

• Graphic

  Integrated Graphics Processor
  VGA output support : RGB port
  - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
  Maximum shared memory of 1024 MB

• Expansion Slots

  1 x PCIe 3.0/2.0 x16 *¹
  2 x PCIe 2.0 x1

• Storage

  Intel® H61(B3) chipset :
  4 x SATA 3Gb/s port(s), blue

• LAN

  Realtek® 8111F, 1 x Gigabit LAN Controller(s)

• Audio

  Realtek® ALC887 8-Channel High Definition Audio CODEC *²

• USB Ports

  Intel® H61(B3) chipset :
  10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)

• Special Features

  ASUS Exclusive Features :
  - AI Suite II
  - Ai Charger
  - Anti-Surge
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - Network iControl
  ASUS Quiet Thermal Solution :
  - ASUS Fan Xpert
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  - ASUS MyLogo 2
  100% All High-quality Conductive Polymer Capacitors

• Back I/O Ports

  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x D-Sub
  1 x LAN (RJ45) port(s)
  4 x USB 2.0
  3 x Audio jack(s)

• Internal I/O Ports

  3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  4 x SATA 3Gb/s connector(s)
  1 x CPU Fan connector(s) (4 -pin)
  1 x Chassis Fan connector(s) (4 -pin)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Internal speaker connector(s)
  1 x Clear CMOS jumper(s)

• Accessories

  User's manual
  I/O Shield
  2 x SATA 3Gb/s cable(s)

• BIOS

  64Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0, EUP-ready

• Manageability

  WOL, PXE, PME Wake Up

• Support Disc

  Drivers
  ASUS Utilities
  ASUS Update
  Anti-Virus Software (OEM Version)

• Form Factor

  uATX Form Factor
  8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )

• Note

  *1: Intel® 3rd Generation Core™ processors support PCIe 3.0 speed.
  *2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
