Thông số kỹ thuật

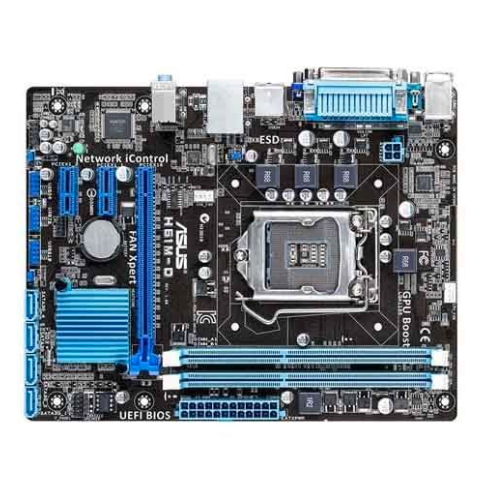

| Dòng sản phẩm | Mainboard Asus H61M - D |
| Bộ xử lý | Intel Core i3/i5/i7 Processors/Pentium Processors/Celeron Processors Support Intel 22nm CPU Support Intel 32nm CPU Support Intel Turbo Boots Technology 2.0 |
| Socket | LGA1155 |
| Chipset | Intel H61(B3) Express |
| Bộ nhớ | 2 x DDR3 DIMM Slots Dual channel DDR3 1066/1333/1600/2200 MHz, up to 16GB |
| Đồ họa | 1 x HDMI port (1920 x 1200) 1 x DVI-D port (1920 x 1200) 1 x RGB port (2048 x 1536) Maximum shared memory of 1024 MB Support Intel HD Graphic |
| Network | 1 x Gigabit LAN Controller |
| Khe cắm mở rộng | 1 x PCIe 2.0 x 16 slots 1 x PCIe 3.0 x 16 slots 2 x PCIe 2.0 x 1 slots |
| Cổng HDD | 4 x SATA 3.0 Gb/s port (Blue) |
| Cổng USB | 10 x USB 2.0 port (4 port on the back panel, 6 port on mid-board) |
| Cổng PS/2 | 1 x PS/2 Mouse port 1 x PS/2 Keyboard port |
| Cổng Audio | Realtek ALC887 8 channel High Definition Audio |
