VGA DELL Nvidia Geforce GTX 1650 4GB DDR6

Graphics Processor

GPU Name

TU116

GPU Variant

TU116-250-KA-A1

Architecture

Turing

Foundry

TSMC

Process Size

12 nm

Transistors

6,600 million

Density

23.2M / mm²

Die Size

284 mm²

Chip Package

BGA-2228

Graphics Card

Release Date

Nov 22nd, 2019

Generation

GeForce 16

Predecessor

GeForce 10

Successor

GeForce 20

Production

Active

Bus Interface

PCIe 3.0 x16

Clock Speeds

Base Clock

1530 MHz

Boost Clock

1725 MHz

Memory Clock

1500 MHz
12 Gbps effective

Memory

Memory Size

4 GB

Memory Type

GDDR6

Memory Bus

128 bit

Bandwidth

192.0 GB/s

Render Config

Shading Units

1280

TMUs

80

ROPs

32

SM Count

20

L1 Cache

64 KB (per SM)

L2 Cache

1024 KB

Theoretical Performance

Pixel Rate

55.20 GPixel/s

Texture Rate

138.0 GTexel/s

FP16 (half)

8.832 TFLOPS (2:1)

FP32 (float)

4.416 TFLOPS

FP64 (double)

138.0 GFLOPS (1:32)

Board Design

Slot Width

Dual-slot

TDP

100 W

Suggested PSU

300 W

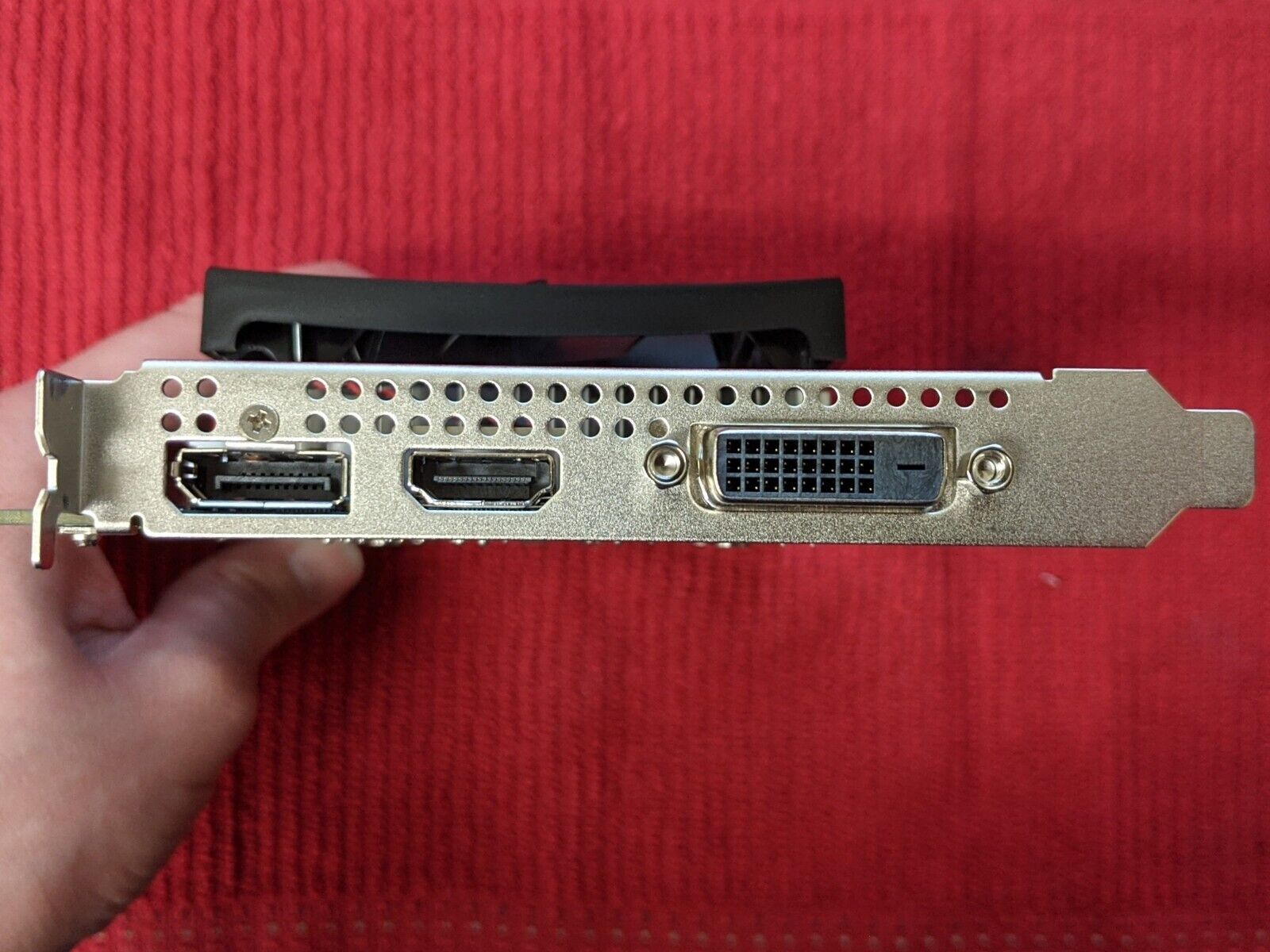

Outputs

1x DVI
1x HDMI 2.0
1x DisplayPort 1.4a

Power Connectors

1x 6-pin

Board Number

PG166 SKU 24

Graphics Features

DirectX

12 (12_1)

OpenGL

4.6

OpenCL

3.0

Vulkan

1.3

CUDA

7.5

Shader Model

6.7
