Thông số kỹ thuật
| Chipset | AMD B350 |
| CPU SUPPORT | Supports AMD AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/7th Gen A-Series/Athlon X4 Processors |
| MEMORY | Support Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200(OC) MHz 2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB Memory Each DIMM supports non-ECC 8/16 GB DDR4 module ※Please refer to www.biostar.com.tw for Memory support list. |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | 4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10 1 x M.2 (M Key) 32Gb/s Connector Supports PCI-E (32Gb/s) & SATA III (6Gb/s) SSD (Ryzen series - Summit Ridge / Pinnacle Ridge / Raven Ridge); Supports SATA III (6Gb/s)SSD (A-series APU - Bristol Ridge) |
| LAN | Realtek RTL8111H - 10/100/1000Mb/s Controller Support Super LAN Surge Protection |
| AUDIO CODEC | Realtek ALC887 8-Channel HD Audio Support HD Audio Support 7.1-channel |
| USB | 6 x USB 3.1 Gen1 Port(4 on rear I/Os and 2 via internal headers) 6 x USB 2.0 Port(2 on rear I/Os and 4 via internal headers) |
| EXPANSION SLOT | 1 x PCI-E 3.0 x16 Slot 2 x PCI-E 2.0 x1 Slot |

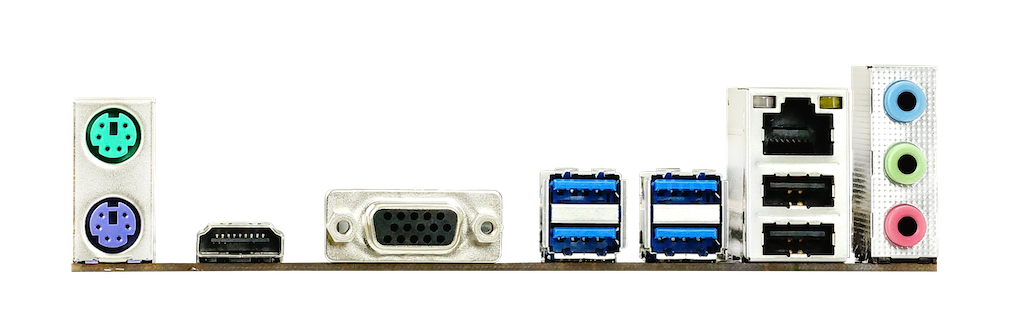

| REAR I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 4 x USB 3.1 Gen1 (5Gb/s) Ports 2 x USB 2.0 Port 1 x HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4 1 x VGA Port ,resolution up to 1920 x 1200 @60Hz 1 x LAN Port 3 x Audio Jacks |
| INTERNAL I/O | 1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1 Gen1 ports) 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 4 x SATA III Connector(6Gb/s) (6Gb/s) 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 1 x System Fan Connector 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x Clear CMOS Header 1 x COM Port Header |
| DIMENSION | Micro ATX Form Factor Dimension: 198 mm x 244 mm ( W x L ) |
| OS SUPPORT | Supports Windows 10(x64) Support Windows 7 (x64) for Bristol / Summit /Pinnacle Ridge only ※Biostar reserves the right to add or remove support for any OS with or without notice. |

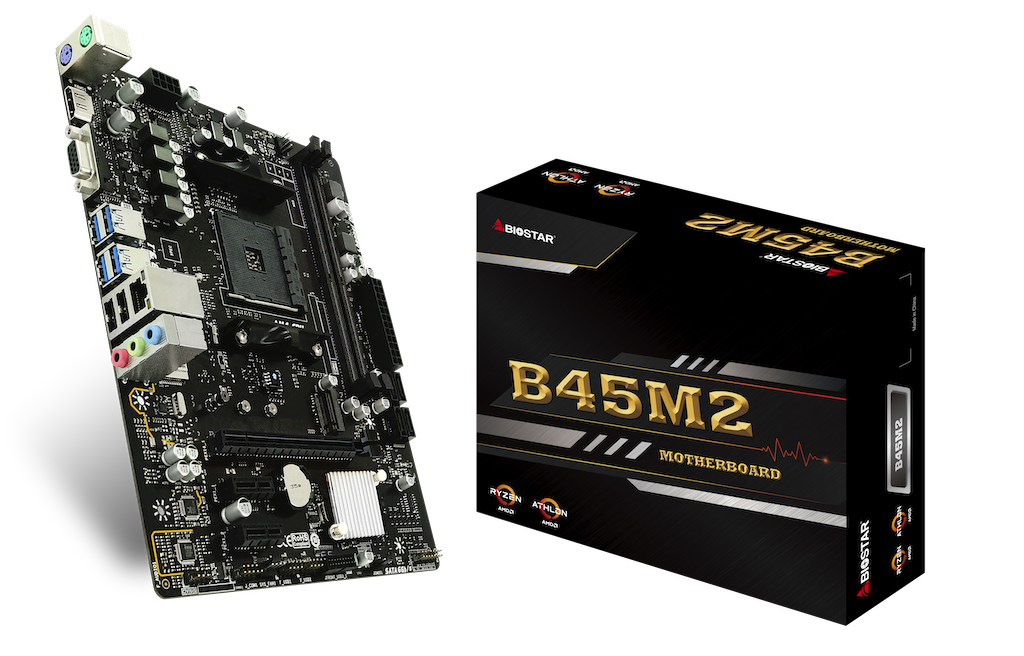

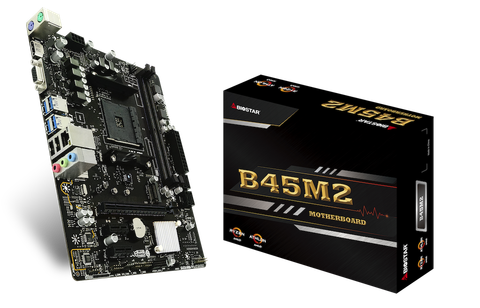

| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
