Armor Your VR Machine

Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium qualify is assured by rigorous testing during development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.

AURA RGB LED

Build your own colorful lighting system! AURA RGB LED and header allows users to connect LED strip and create their unique PC style easily. The ASRock AURA RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop!

Dual Intel^® LAN

Users are able to connect two LAN cables to this motherboard's rear I/O. Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective.

* Teaming is not supported with Windows^® 10.

Dual USB 3.1 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.1 ports built on the rear i/o for supporting next generation USB 3.1 devices and to deliver up to 10 Gbps data transfer rates.

Dual Ultra M.2 For SSD

Two of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.

PCI-E Steel Slot

The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

Normal Slots:
Easy to be broken

Intel^® Optane™ Memory Ready

Supports Intel^® Optane™ memory technology and Intel^® Optane™ storage technology that redenes a new standard of high performance and responsiveness.

ASRock Intel^® 4-Layer Memory POOL Technology

POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.

SLI HB Bridge Free Bundled

The free bundled ASRock's new SLI HB Bridge is compatible with the NVIDIA^® GeForce GTX 1080 and 1070 graphics cards that doubles the available transfer bandwidth, thus delivering rock stable gameplay and experiencing surround gaming in the best way.

F-Stream

Modify Your Weapon

Key Master

Consists of two major features, Sniper Key and Macro Key. It enhances your mouse and keyboard with customizable macros, sniper modes, key repeat rates and repeat delay.

F-Stream

F-Stream is Fatal1ty's multi purpose software suite with a new interface, more new features and improved utilities.

Fatal1ty Mouse Port

After plugging a USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can choose their own preferred mouse polling rate from 125 Hz to 1000 Hz.

Creative Sound Blaster™ Cinema 3

Sound Blaster™ Cinema 3 is the latest software that is designed with SBX Pro Studio to deliver a holistic audio experience. Whether you're gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.

120dB SNR DAC

AURA RGB LED

Gold Audio connector

TI^® NE5532 Premium Headset Amplifier

Individual PCB Layers for R/L Audio Channel

Impedance Sensing on Front Out port

PCB Isolate Shielding

Pure Power-In

Nichicon Fine Gold Series Audio Caps

Gold Audio Jacks

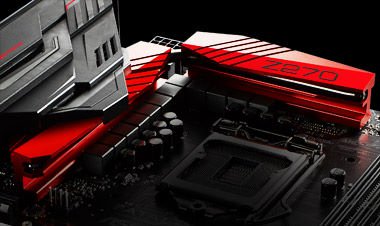

XXL Aluminum Alloy Heatsink

Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

10 Power Phase

Designed with an 10 Power Phase Design, this motherboard provides completely smooth power delivery to the CPU and offers unmatched overclocking capabilities and enhanced performance with the lowest temperature.

Premium 45A Power Choke

Compared to traditional chokes, ASRock’s premium 45A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Premium Memory Alloy Choke

Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

Combo Caps

A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

Nichicon 12K Black Caps

A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

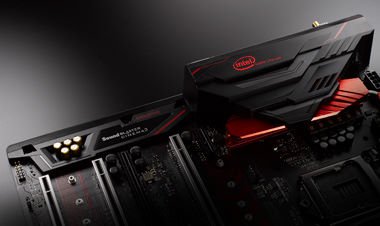

I/O Armor

A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

Matte Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Gaming Armor

Built to Kill

Allows ASRock to be your most trustworthy ally, providing both hardware and software support.

CPU Power

● Hi-Density Power Connector

Memory

● 15μ Gold Contact in DIMM Slots

VGA Card

● 15μ Gold Contact in PCI-E Steel Slots

Audio

● Creative Sound Blaster™ Cinema 3

Cooling

● XXL Aluminum Alloy Heatsink
● Heat Pipe Design

Internet

● Dual Intel^® LAN

Hyper BCLK Engine II

An additional external base clock generator which provides a wider range of frequencies and more precise clock waveforms.

User friendly UEFI & EZ Mode

ASRock UEFI is the smoothest, slickest mouse-controlled BIOS has been improved to make it even more friendly. Advanced mode provides a more comprehensive environment that is designed for overclockers and power users who want maximum control over their PC’s hardware. EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

Gold Audio Jack /
Gold Audio Connector

Everything will wear off in time, but gold looks better! Gold audio jack and connector provides stable sound transmission!

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

more

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
